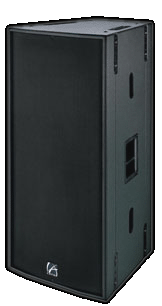

型號：JAV215E

SPECIFICATIONS

• Configuration: JAV 215E
• System Type: 2 x 15", 2-way Full Range Bass Reflex System
• Frequency Range(-10 dB): 35 Hz - 20 kHz
• Frequency Range(+/-3 dB): 70 Hz - 20 kHz
• Crossover Frequency: 1600 Hz LADPSTM HF Driver Protection
• Nominal Dispersion: 60°H x 60°V
• Power Handing: 1200 W RMS/2400W Program
• Peak Power Capacity: 4800 watts
• Sensitivity at 1 W / 1 M : 102 dB
• Rated Maximum SPL: 135 dB peak, @1 m
• Nominal Impedance: 4 ohms
• LF Driver: 2 x LA 15 LV 35
• HF Driver: 1 x LA H 475
• Dimensions (H x W x D): 47.28" x 18.715" x 19.7" 1200 mm x 475 mm x 500 mm
• Net Weight: 102.8 lbs (46.8 kg)
• Input Connectors: Multifunction Connectors
• Mounting & Suspension: steel pole-mount socket

主要特征

• JAV 215E 是一款超值遠射程工程音箱，采用15"超磁導鋁盆雙磁低音，鈦鏌高音，恒指向號角，功率可達4 OHMS，1200-2400 Wats，安裝方便，可工程吊裝，可矩陣排列、可線性改裝，可防水、防曬、防酸堿、耐磨，LADPSTM技術能有效地保護單元。整個音箱聽起來音色柔順動人，感染力和通透性極好！ 適用于戶外流動演出及劇院等場所。

適用范圍

• Sound Reinforcement
• A/V Systems
• Sport Facilities
• Houses of Worship
• Distributed Systems
